Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-134
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Folding Fence Barrier Gate Operator For Parking Lots And Garages |
Color: |
Black,red,blue,white |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Rated Power: |
80W |
Capacitor: |
9+9uF/450W |
Telescopic Arm: |
Optional |
Name: |
Folding Fence Barrier Gate Operator For Parking Lots And Garages |
Color: |
Black,red,blue,white |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Rated Power: |
80W |
Capacitor: |
9+9uF/450W |
Telescopic Arm: |
Optional |

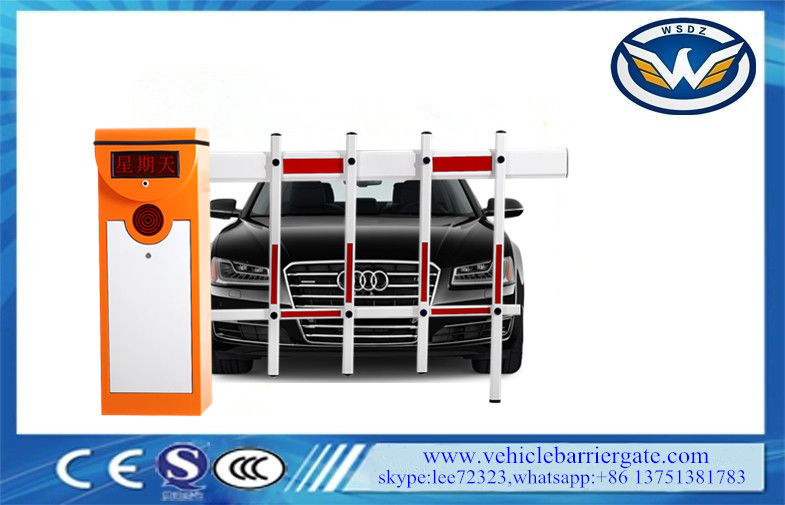

Folding Fence Barrier Gate Operator For Parking Lots And Garages
WSTP-134 Barrier Gate Operator with Automatic moisture uses the first-generation motor. It is stable and has a long service life performance, running five million times. Its housing is made of galvanized steel with 2mm thickness and painted so that the barrier can be used indoors and outdoors.
Barrier Gate Operator Specification:
1. Barrier Gate Operator Automatic moisture control
2. Barrier Gate Operator motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Barrier Gate Operator Motor cooling fan to avoid the over-heating possibility
4. Barrier Gate Operator Automatic reversing when the barrier boom meets the obstruction
5. Barrier Gate Operator Auto closing realization through menu setting on the control panel
6. Barrier Gate Operator The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switches (wire control), and traffic light
7. Barrier Gate Operator RS485 Communication Module
8. Barrier Gate Operator Traffic light interface
9. Barrier Gate Operator LED Screen
10. Barrier Gate Operator Manual release device to operate the barrier when power failure
11. Barrier Gate Operator Infrared Photocells (optional)
12. Support the external and internal Vehicle Loop Detector (optional)
Barrier Gate Operator Motor Speed and Boom Type:
| Boom type | Boom Length(M) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6M≥L＞4.5M | 6S | H=0.8M |
| 4.5m≥L＞3M | 3S | ||
| 3m≥L | 1.5S | ||
|
Folding boom 90 degree |
5m≥L＞3M | 6S | |
| 3m≥L | 3S | ||
|
Folding boom 180 degree
|
5m≥L＞3M | 6S | |
| 3m≥L | 3S | ||
|
Fence Boom Two-level |
5m≥L | 6S | H=0.9M |
|
Fence boom Three-Level |
m≥L | 3S | H=1.5M |
Barrier Gate Operator Selection of spring.
| Spring type | Diameter | Spring Length |
| Small size | 4.5MM | 280MM |
| Medium size | 5.5MM | 280MM |
| Big size | 6.5MM | 280MM |
Barrier Gate Operator Warranty:
1. The Drive Motor is warranted against the manufacturer’s defect for the lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
FAQ:
1. When the barrier finishes closing, why does the arm open itself slowly?
The spring is too tight, you need to release the spring a little, and then test it again.
See whether the main crank touches the triangle tightly or not, if tightly, adjust it.
Reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
As for this, it means the resistance on the controller board is broken, if you have professional tools to check,
then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
If use our controller panel, you only need to find resistance R37 on the controller panel and replace it is ok.
4. When the barrier closed, why is there a 5-degree angle of inclination?
The model is not good, and the gear doesn't fit each other tightly.
The barrier didn't adjust well, need to reset it.
5. When the barrier finishes opening, but it closes itself without any order control, what's the problem?
Check the loop cable first, because the loop cable may be broken
To check the motor sensor, if it is not set well, then reset it in the middle between two holes on the sensor rod.
6. Why does the arm wave a lot when opening and closing?
The spring is very tight.
The Screw touches the rubber absorption tightly and needs to reset again.
7. Rubber lining installation suggestion:
It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
The place with many vehicles coming and going, like shopping center, carpark area.
8. Can you accept OEM/ODM orders?
We are manufacturer of barrier gate, with 7 years researching and developing experience.
