Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Access Road Toll Barrier Gate Used Road Barrier Gate By Toll Station |
Brand: |
WONSUN |
Voltage: |
AC 220V Or 110V |
Applications: |
Widely Used For Highway |
Country Of Origin: |
Shenzhen, China |
Main Markets: |
Russia, Spain,Malaysia, Myanmar, Singapore, Thailand, Philippines, Indonesia.,United Arab Emirates, Iraq, Brazil And Argentina |
Name: |
Access Road Toll Barrier Gate Used Road Barrier Gate By Toll Station |
Brand: |
WONSUN |
Voltage: |
AC 220V Or 110V |
Applications: |
Widely Used For Highway |
Country Of Origin: |
Shenzhen, China |
Main Markets: |
Russia, Spain,Malaysia, Myanmar, Singapore, Thailand, Philippines, Indonesia.,United Arab Emirates, Iraq, Brazil And Argentina |
Highway Barrier Arm Gates Road Barrier Gate By Toll Stations
Advantages
1. steady function, sensitive reaction, low noise
2.The case shell is made of thickened steel which is shaped by 13 process flow. Without fading ,waterproofing, not rusty, durable.
3.high sensitive limit switch, pole can be instant turn on and off .accurate location.
4.control system adopts hi-tech digital chip technology.
5. the anti-collision function. Protecting the passenger
6. the inductive function ,with the digital vehicle detector
7.the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.
Model Selection and Differences
Specifications
|
Model |
WST1211 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | USD 63,608 | 1 |
| South America | USD 508,869 | 8 |
| Eastern Europe | USD 3,180,436 | 50 |
| Southeast Asia | USD 318,043 | 5 |
| Oceania | USD 127,217 | 2 |
| Mid East | USD 190,826 | 3 |
| Western Europe | USD 1,017,739 | 16 |
| Domestic Market | USD 954,130 | 15 |
Arm type:
a. Straight arm- suitable for broad area without height limitation
b. Folding arm- suitable for the place with height limitation such as underground parking lot

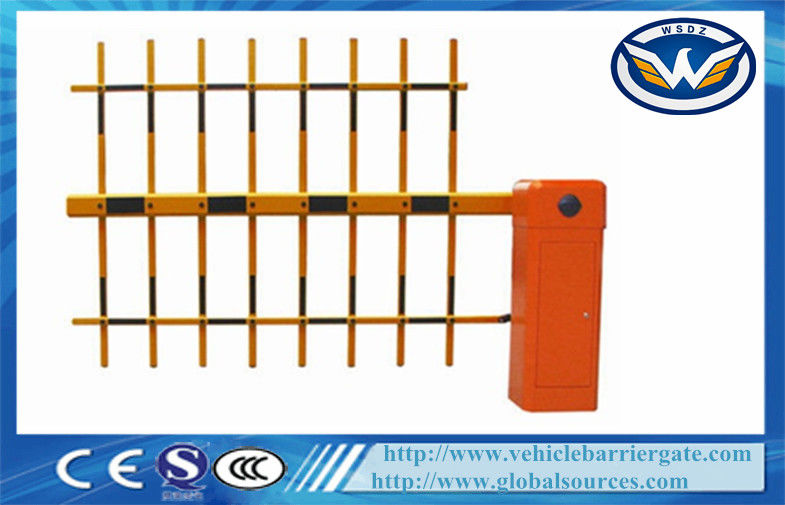

c. Fence arm- suitable for the place with the ban of animals.
Why choose WONSUN?
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
