Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Toll Barrier Gate Heavy-Duty Design For 24 Hours Continuous Application |
Motor Rated Power: |
50W,Max 100W |
Voltage: |
AC90V~AC264V,DC24V |
Continuously Of Operation: |
100% |
Model Number: |
DZ-138 |
MTTR: |
<0.5Hrs |
Name: |
Toll Barrier Gate Heavy-Duty Design For 24 Hours Continuous Application |
Motor Rated Power: |
50W,Max 100W |
Voltage: |
AC90V~AC264V,DC24V |
Continuously Of Operation: |
100% |
Model Number: |
DZ-138 |
MTTR: |
<0.5Hrs |
Toll Barrier Gate Heavy-Duty Design For 24 Hours Continuous Application

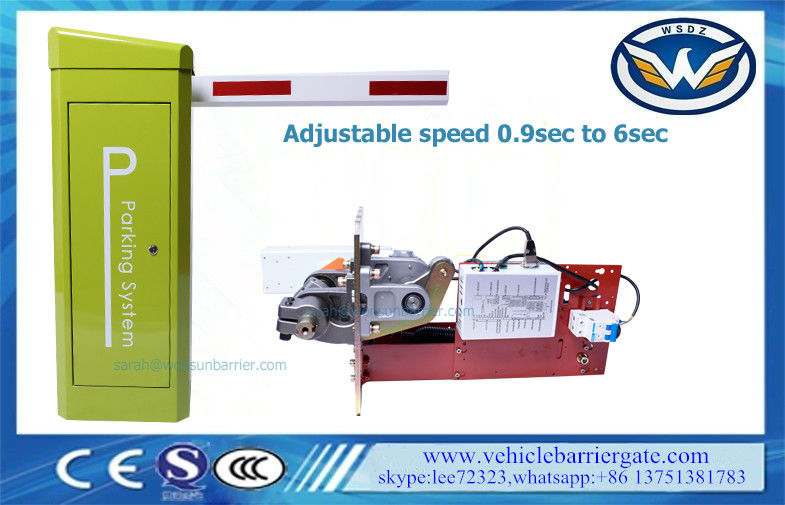

DZ-138 Toll Barrier Gate servo motor barrier gates are of international standard and quality thanks to their aesthetical appearance, steel sheet outer case not affected by the weather conditions, and powerful engine. The advanced function of auto-reverse on the control board prevents the lowering of the Toll Barrier Gate arm until the completion of the vehicle passage. Thus, the possible accidents are prevented.
The operating speed can be adjusted according to the needs of the user. The barrier gates might be controlled with alternate accessories, like a remote control, manual button, and card reader upon request, and different arm lengths can be used based on the width of the entrance.
Toll Barrier Gate Data sheet
| Toll Barrier Gate Rated Volatge | AC90V~AC264V,DC24V,50/60HZ |
| Toll Barrier Gate Speed Time | 0.3s,0.6s,0.9s,2s,4s,6s |
| Toll Barrier Gate Motor Power | 50W,max 100W |
| Toll Barrier Gate Boom Length | 2meter to 6meter(max) |
| Toll Barrier Gate Working Temperature | -40℃~85℃ |
| Toll Barrier Gate Housing Size | 342*312*959*2mm(L*W*H*TH) |
| Toll Barrier Gate Lifetime | >10 million times or 10 years |
| MTTR | <0.5hour |
| MTBF | >5 million times |
| Protection Grade | IP68 |
| Remote Control Distance | ≤100 meter |
| Motor Speed | 3000 r/min |
| Relative Humidity | ≤90% |
| Running Noise | <50dB |
| Net Weight | 42.6KG |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Apartment Block Access |
Toll Barrier Gate Advanced Features
* Low-power servo Toll Barrier Gate motor, truly maintenance-free, high durability, and energy saving.
* No position sensor, each stop with the same accuracy. Pair use is fully synchronized.
* No clutch device, boom will auto-rise when power is off (or unlock when power is off, only use your hand to lift the boom gently).
* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.
* Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.
* Toll Barrier Gate Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.
* Toll Barrier Gate Boom rises automatically when power is off, complying with the fire safety requirements.
* Long-time maintenance-free, greatly reducing maintenance costs.
* During the movement without any mechanical impact or shock absorption, the highest reliability, and the longest service life.
* Direction exchange is easy.
* Free debugging during production and installation, greatly reduces the maintenance and labor costs.
| Toll Barrier Gate Title | Specification | Qty | Unit | Note |
| Toll Barrier Gate boom | 1 | Piece | ||
| Toll Barrier Gate Machine case pressboard | 2 | piece | For fixing case | |
| Toll Barrier Gate Expansion bolt | M16X150 | 4 | set | For fixing case |
| Toll Barrier Gate Supporting pole | 1 | piece | Optional part | |
| Toll Barrier Gate Expansion bolt | M8 | 4 | unit | For fixing boom |
| Toll Barrier Gate Boom fixed screws | M12*70 | 2 | unit | |
| Toll Barrier Gate Case Key | 2 | unit | ||
| Toll Barrier Gate Balance spring | 1 | unit | For spare usage | |
| Toll Barrier Gate Remote controller | 2 | unit | ||
| Toll Barrier Gate Machine control | 1 | unit | ||
| Toll Barrier Gate Instruction | 1 | piece |
1. Q: How long will your Toll Barrier Gate work?
A: barrier life span more than 10 years.
2. Q: What should we do if there are problems during use?
A: We have 2 year guarantee. If any Toll Barrier Gate problems you have, Welcome to email or call me! We will provide our best professional service for you.
3. Q: First-time import, how can I believe that you would send a product?
A: We are a verified company by Everychina, to make transactions successful.
4. Q: How to import your machines?
1. We will prepare the Toll Barrier Gate and shipment for you after payment;
2. We will give you a bill of loading after the barrier departs our shipping port;
3. Our shipping agent will contact you when the barrier arrives;
4. You can pick up Toll Barrier Gates by bill of loading.
