Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE/SGS/ISO
Model Number: WSTP-116
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |
New Design Parking Lot Barrier Gate Vehicle Security Barrier Boom Gate |
Housing Material: |
2.0mm Thickness Cold Roll Steel Sheet,water-proof |
Rating Voltage: |
AC220V/110±10% |
Frequency: |
50/60HZ |
Motor Speed: |
0.6s/1s/1.8s/3s/6s |
Boom Type: |
Straight,two Fence,three Fence,90 Degree,180 Degree |
Power Supply: |
120W |
Boom Material: |
Aluminum Alloy |
Color: |
Blue And Orange |
Gross Weight: |
60KGS |
Working Temperature: |
40℃~+75℃ |
Keywords: |
Vehicle Barrier Boom Gate |
Product Name: |
New Design Parking Lot Barrier Gate Vehicle Security Barrier Boom Gate |
Housing Material: |
2.0mm Thickness Cold Roll Steel Sheet,water-proof |
Rating Voltage: |
AC220V/110±10% |
Frequency: |
50/60HZ |
Motor Speed: |
0.6s/1s/1.8s/3s/6s |
Boom Type: |
Straight,two Fence,three Fence,90 Degree,180 Degree |
Power Supply: |
120W |
Boom Material: |
Aluminum Alloy |
Color: |
Blue And Orange |
Gross Weight: |
60KGS |
Working Temperature: |
40℃~+75℃ |
Keywords: |
Vehicle Barrier Boom Gate |

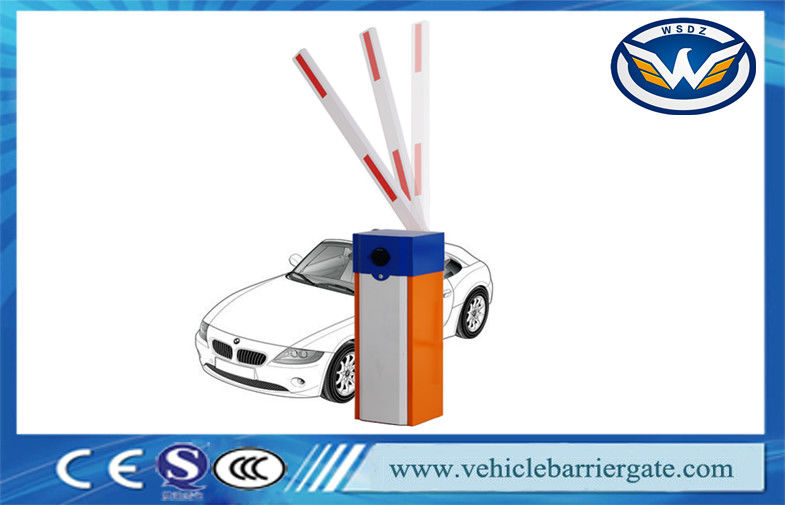

New Design Parking Lot Barrier Gate Vehicle Security Barrier Boom Gate
WSTP116 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:
Product Display:
Barrier Gate Specifications:
| Product Name | New Design Parking Lot Barrier Gate Vehicle Security Barrier Boom Gate |
| Model Nuber | WSTP-116 |
| Operation Time | 0.6s,1s1.8s,3s,6s |
| Arm Type | Straight arm,two fence arm,three fence arm,90 degree folding arm,180 degree folding arm |
| Rating Voltage | AC220V/110V±10%,50/60HZ |
| Power Supply | 120W |
| Size | 330*300*950mm(L*W*H) |
| Material | 2.0mm thickness Galvanized plate sheet or cold roll steel sheet |
| Remote Control Distance | ≥30meters |
| Working Temperature | -35℃ to +75℃ |
| Packing |
1030*380*450mm,with seven layers carton size,inside with air bubble film for protection |
| Warranty | one year |
Mainly Functions:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Packing List:
| Machine Housing | 1 set with top head and machine housing body, 2mm galvanized plate or cold roll palte with epoxy paint, 3 years without fading, the color can be customized. |
| Barrier Core | Including AC Motor, spring device and main rod parts, which supply the power |
| Controller Panel | The circuit board of barrier, which is multifuctional. Can connect with parking system, loop detector, photocell, LED light, Red & Green light, |
| Barrier Arm | As for standard configuration, we provide straigh arm, but if you need folding arm or fence arm, you need pay extra money |
| Release Clutch | When power off, you can use release clutch to control barrier |
| Manual Booklet | For customer to have a further understand of our product |
| The Bolts |
The expansion bolts to fix the machine housing The bolts to fix the barrier arm |
| Remote Control Suit | 2 pcs remote control, 1 ps receiver |
Packing:
FAQ:
Q1: What’s your MOQ?
A1: MOQ 1 pc.
Q2: How about bout lead time and delivery?
A2: 2-7 days lead time. We can send by any kind of shipping methods.
Q3: Can you do OEM?
A3: Yes, we do OEM, and can customize barrier gate case, color, logo or controller for you.
Q4: What about quality warranty and after-sale service?
A4: 1 year warranty. We will support customer any quality issues, and our enterprise principle is to build long term after-sale service for all customers.
Q5: Can you provide barrier gate installation instruction?
A5: Online/remote instruction can be provided by the technicians if need. Others depend on your detailed requirement.
