Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE/SGS
Model Number: WSTP-115B
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |

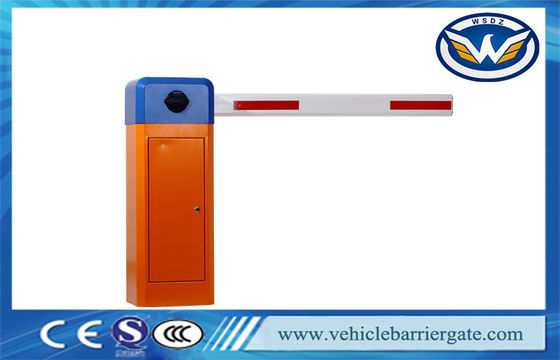

IP44 Grade Car Park Boom Automatic Barrier Driveway Barrier Gates |
Color: |
Grey As Standard,customized |
Material: |
2.0mm Cold Roll Steel Sheet |
Opeartion Time: |
0.6s,1s,1.8s,3s,6s |
Arm Type: |
Stright Arm,fence Arm,folding Arm |
Rating Voltage: |
AC110V/220±10%，50/60HZ |
Gross Weight: |
55KGS |
Protection Grade: |
IP44 |
Size: |
320*280*920mm |
Keywords: |
Driveway Barrier Gates |
Product Name: |
IP44 Grade Car Park Boom Automatic Barrier Driveway Barrier Gates |
Color: |
Grey As Standard,customized |
Material: |
2.0mm Cold Roll Steel Sheet |
Opeartion Time: |
0.6s,1s,1.8s,3s,6s |
Arm Type: |
Stright Arm,fence Arm,folding Arm |
Rating Voltage: |
AC110V/220±10%，50/60HZ |
Gross Weight: |
55KGS |
Protection Grade: |
IP44 |
Size: |
320*280*920mm |
Keywords: |
Driveway Barrier Gates |
Barrier Gate
Torque motor,steady,low noise,free maintenance
100% duty cycle,heavy duty
Automatic fault-detect
5 million MTBF
Intelligent Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle at highway,shopping center, exhibition center, hospitals, airports etc.
Quick Details
| Name | Automatic Barrier Gate | Application | Parking System |
| Speed | 0.6/1/1.8/3/6 second | Feature | Manual release |
| Rated Power | 80W | Certificate | CE, ISO, SGS |
| Net Weight | 60KG | Voltage |
AC220V, AC110V |
| Product Name | IP44 Grade Car Park Boom Automatic Barrier Driveway Barrier Gates |
| Model | WSTP-115B |
| Size | 350*280*920mm |
| Rating Voltage | AC 220/110V ±10%, 50/60Hz |
| Color | yellow,orange,blue,red,black,customized |
| Motor Power | 80w |
| Speed Option | 0.6s,1s1.8s; 3s; 6s |
| Material | 2.0mm galvanized plate or cold roll plate with epoxy paint |
| Weight | 55 KG |
| Operation Testing | More than 5 million times |
| Arm Option |
Straight arm, 1-6 m for option, 45*80mm or 45*100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence |
| Working Temperature | -45°C — +75°C |
| Remote Control Distance | Less than 30m |
| Application | Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center |
What's the features and functions of barrier gate?
--Manual release available if meet power failure
--Machine core with compression spring, effectively avoids the accidents caused by spring breaking
--Die-casting aluminum alloy motor, precision and good for thermal radiating
--Motor cooling fan, solving the problem of heat-protection
--Double safety limit switches (photoelectricity limit switch/motor memory sensor)
--Reversing on obstacle
--Traffic light interface
--Wire control (switch signal) / Remote control
--RS485 communication module (optional)
--Support the Infrared Photocell for anti-bumping function (optional)
--Support the Loop Detector for auto-closing & anti-bumping (optional)
Packing&Shiping
use strong carton case with air bubble filled inside to protect products and save your cost.
shipped in 3-7days after payment
Packing List
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
