Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-130
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
335 * 285 * 926mm |
Barrier Certificate: |
CE,ISO |
Color: |
Orange, Yellow |
Product Name: |
China Automatic Gate Manufacturers Vehicle Barrier Gate Systems |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Dimension: |
335 * 285 * 926mm |
Barrier Certificate: |
CE,ISO |
Color: |
Orange, Yellow |
Product Name: |
China Automatic Gate Manufacturers Vehicle Barrier Gate Systems |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |

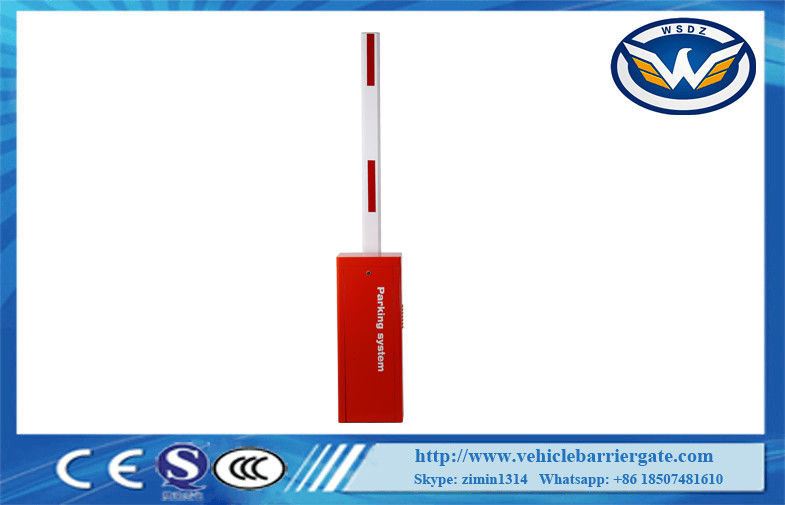

Custom Security Motorized Vehicle Barrier Gate Systems Ce Iso Certificate
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Technical Specifications
Name | Barrier gate, Parking barrier,Boom barrier |
Model | DZ-130 |
Size | 350*270*935mm |
Rating Voltage | AC 220/110V ±10%, 50/60Hz |
Motor Power | 80w |
Speed Option | 1.8s; 3s; 6s |
Material | 1.5mm galvanized plate or cold roll plate with epoxy paint |
Weight | 55 KG |
Operation Testing | More than 5 million times |
Arm Option |
Straight arm, 1-6 m for option, 45*80mm or 45*100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence |
Working Temperature | -45°C — +75°C |
Remote Control Distance | Less than 30m |
Application | Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center |
Features:
1. AC motor is more powerful and no maintenance.
2. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate
closing time is also arranged from 1.8 second to 6 seconds.
3. All the operation process is soft without any noise and shaking.
4. Infrared photocell interface, Loop detector interface and IC system
5. interface are reserved for the other functions.
6. Green light and red light are used inside for indication the position of the beam.
Each barrier will include:
1 pcs Barrier |
1 pcs arm boom (from 1m to 6m can customised) |
1 pcs control panel(built inside) |
2 pcs remote controllers, 1 pc push button |
1 pcs manual book |
Optional Accessories:
1. Loop detector: single loop detector or dual channel loop detector |
2. Photocell |
3. Flash light |
4. Boom rest/ arm holder |
5. Control board |
6. RS485 communication interface
|
Parking list:
Items | quantity | items | quantity |
Paint-coated case | 1 | motor | 1 |
Transmission | 1 | limit switch | 1 |
Barrier arm | 1 | capacitor | 1 |
Spring | 1 | circuit board | 1 |
Remote control device | 2 | console control device | 1 |
Installation kit | 1 |
Customer project:
RFQ:
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
A: Yes, we could offer quoted price sample for you within 1-2 working days after payment confirmed.
T/T,Payapl, Western union
