Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
100% Heavy Duty Blue Automatic Vehicle Barrier Gate OEM Service |
Housing Size: |
320*250*944mm |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Max Boom Length: |
8m |
Remote Control Distance: |
≥30m |
Name: |
100% Heavy Duty Blue Automatic Vehicle Barrier Gate OEM Service |
Housing Size: |
320*250*944mm |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Max Boom Length: |
8m |
Remote Control Distance: |
≥30m |

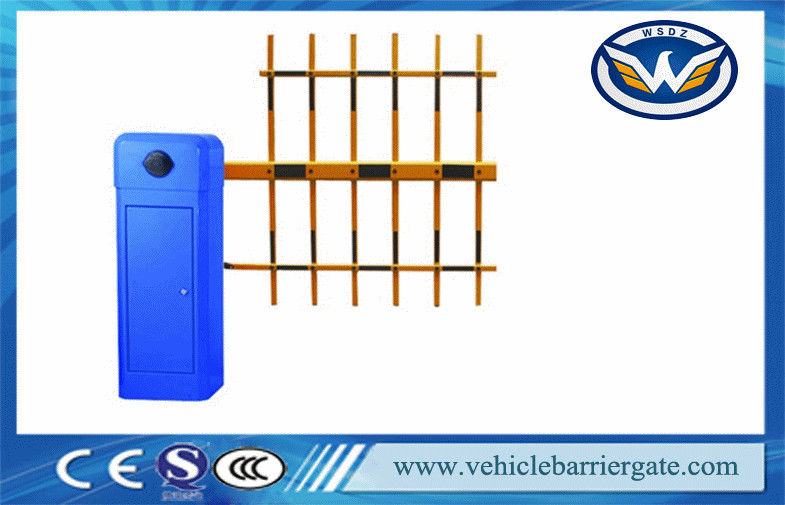

100% Heavy Duty Blue Automatic Vehicle Barrier Gate OEM Service
| Name | Bi-directional Barrier Gate | Application | Parking System |
| Speed | 3/6 second | Feature | Manual release |
| Rated Power | 80W | Certificate | CE, ISO, SGS |
| Net Weight | 60KG | Voltage | AC220V, AC110V |
Model:WST1211
Working Temperature:-40℃～+75℃
Voltage:220V±10%, 110V±10%, 50/60HZ
Rated Power:80W
Relative Humidity:≤90%
Remote Control Distance:≥30m
Net Weigh:60kgs
Speed:3s,6s
Max Boom Length:6Meters
Motor Rotational Speed:1400rmp
Protection Degree:IP44
Advanced Features
|
1) The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again. |
|
2) Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring. |
| 3) Three control buttons:for boom raising, falling and pausing. |
| 4) Boom backtrack function:the boom will rise if hits something when falling. |
|
5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed. |
| 6) Both external and internal loop detectors are supported. |
| 7) "open","close" and "stop" controlling interfaces. |
| 8) RS-485 communication serial interface(optional) |
| 9) Traffic light signal connection device: red light for stop,green light for pass. |
| 10) Remote control and wire control for selection. |
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no
action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but
even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90°
vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
FAQ:
1-Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale
services who can speak fluent Engligh.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7 working days longer
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can
also choose your own shipping forwarder. it normally takes 7-60 days depend on different
countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the different shipping method, they
will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a
design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own techinical team & after- sale services who can speak fluent Engligh.
3. We offer OEM services. Can print your own logo on the products , can customize the retail
box packing and other things.
4. We have very experienced engineers ,can help you better use it.
Why choose us?
| The following situations are Free for serving |
| 1.One year's free servicing is supplied( not including the arm) |
| 2. Lifetiom charged servicing is offered. |
| 3. Technology servicing is supplied |
| The following situations are charged for servicing (or changing): |
| 1. Broken by wrong installation. |
| 2 Broken by improper voltae. |
| 3. The surfaces of the system destroyed by wrong installation our use. |
| 4. Broken by natural disaster. |
| 5. Overdue |
| 6. Servicing items out of our promises. |
| The upgrade and improvement of the product won't be notified if there is any. The explaining authority of this product instruction and service article belong to the production factory. |
