Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-115
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $279/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Name: |
220/110VAC Motor Automatic Barrier Gate |
Boom Length: |
Max 6 Meters |
Humidity: |
≤90% |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Housing Dimension: |
W330*D300*H950mm |
Protection Grade: |
IP44 |
Name: |
220/110VAC Motor Automatic Barrier Gate |
Boom Length: |
Max 6 Meters |
Humidity: |
≤90% |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Housing Dimension: |
W330*D300*H950mm |
Protection Grade: |
IP44 |
RS485 Traffic Light Interface 220/110VAC Motor Vehicle Barrier Gate Auto Control For Car Parking Lots

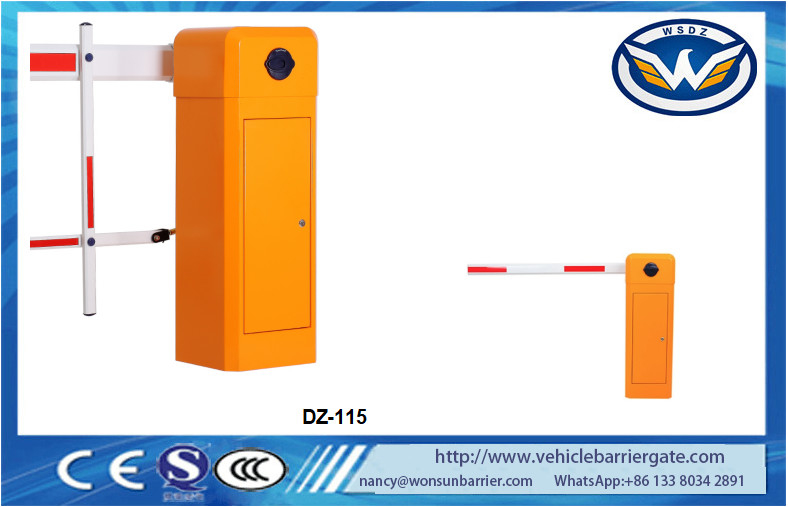

DZ-115 Barrier Gate with Automatic moisture uses the first AC generation motor. It is stable and has long service life performance, running five million times. Its housing is made of galvanized steel with 2mm thickness, and painted, so that the barrier can be used in door and outdoor.
Specification:
Technical data
| PARTICULARS | DESCRIPTION |
| Application | Outdoor |
| Drive | Block continues torque motor |
| Version | Left handed or Right Handed |
| Logic Control | Included |
| Intelligence | The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation. |
| Power Supply | 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z |
| Colour | Different & Distinct colour pattern as decided by owner. |
| Boom Specification | Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy. |
| Housing Dimension | W330mm, D300mm, H950mm |
| Protection | All housing and internal parts will be rust & corrosion free metals or alloys of high strength. |
| Opening & closing time | 1.5s-6sec adjustable |
| Power off | turning the motor wheel |
| Safety | Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle. |
| Duty cycle | 100% |
| Integration | Capable of integration with all the surveillance and access control systems. |
| MTBF | 5 million cycle |
| Certification | CE Confirm |
| Material of construction | Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet. |
| Operating temperature |
- 25 ºC to + 7 5 ºC |
Motor Speed and Boom Type:
| Boom type | Boom Length(m) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6m≥L＞5m | 6S | H=0.83M |
| 5m≥L＞4.5m | 6S | ||
| 4.5m≥L≥3m | 6S | ||
|
Folding boom 90 degree |
5m≥L | 6S | |
|
Folding boom 180 degree |
5m≥L | 6S | |
|
Fence Boom Two-level |
5m≥L≥4m | 6S | H=0.9M |
| 4m≥L≥3m | 6S | ||
|
Fence boom Three-Level |
5m≥L≥4m | 6S | H=1.5M |
| 4m≥L≥3m | 6S |
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
