Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: SF-DZ-V pro
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: $459/1 set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 3000 Sets/Month
Features: |
Three Springs, Speed Adjustable, Arm Direction Change Left Or Right |
Material: |
Cold Roll Plate Or Galvanized Plate |
Arm Type: |
Straight, Folding, Fencing |
Operation Time: |
0.6s, 0.9s, 3s, 6s, Adjustable |
Motor No-load Speed: |
3000r/min |
OEM/ODM: |
Support |
Boom Length: |
Max 6 Meters |
Color: |
White, Grey, Customized |
Features: |
Three Springs, Speed Adjustable, Arm Direction Change Left Or Right |
Material: |
Cold Roll Plate Or Galvanized Plate |
Arm Type: |
Straight, Folding, Fencing |
Operation Time: |
0.6s, 0.9s, 3s, 6s, Adjustable |
Motor No-load Speed: |
3000r/min |
OEM/ODM: |
Support |
Boom Length: |
Max 6 Meters |
Color: |
White, Grey, Customized |

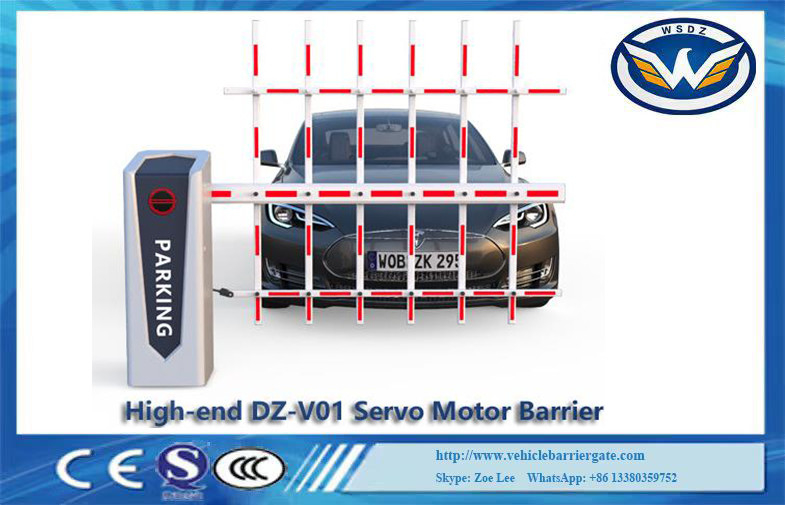

Wonsun 100% Pure Automatic Servo Motor Traffic Barrier Gate with Straight Boom Parking System
Our Advantages:
1. OEM Brand, Logo, Label available, Factory Price
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support.
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
Arm swing out function, when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage on vehicle and machine core.
Max boom length: 6 Meter. Arm Automatic Barrier Gate , Low Noise Parking Lot Gate Systems and vibration, high reliability, long life, smooth speed. Can be equipped with straight rod, folding, fence a variety of gear lever to meet different market needs. High-sensitivity arm auto reverse function( intensity can be adjusted).
Pure copper gear, precision hard tooth surface, small gap, good bite; high hardness, high toughness, durable wear.
Spoke lever with a special type of aluminum, can be affixed with two-color reflective film, can be clearly visible at night.
Arm direction quickly interchanged: interchanged accoding to different dirctions on construction site, reduce inventory and captial pressure.
Reserved for a variety of interfaces, external infrared, vehicle detectors and other accessories to meet the security needs.Relaxed to install the location, easy to use with the parking lot
WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure, high precision, high consistency and standardization, and use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise, the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using digital signal processor (DSP) as the control core, it can realize more complex algorithms, realize network and intelligence, (IPM) internal integrated drive circuit can detect faults and display fault codes to quickly solve fault problems. The three-bar linkage design of the barrier makes rapid rise and fall operation more stable Using solar charging applications, it is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, mine tunnels, etc., without electricity, and fully realizes automatic operation control.
| PRODUCT PARAMETER | ||
| Working Temperature | -35℃~+65℃ | -35℃~+65℃ |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Open/close Speed | 0.9Sec-8Sec(Adjustable) | 0.6Sec-6Sec(Adjustable) |
| Rated Power | 200W | 400W |
| Driving Method | Servo motor | Servo motor |
| Humidity | ≤90% | ≤90% |
| Remote Control Distance | ≤100m(open, sunny) | ≤100m(open, sunny) |
| Protection Grade | IP44 | IP44 |
| Motor No - load Speed | 3000r/min | 3000r/min |
| Max Boom Length | 3m-6m | 2.5m |
Functions:
1. Three-spring design, 5-6m arm 3pcs spring, 4-4.5m 2 pcs spring, 3m 1pc spring. Easy to change arm length.
2. Speed adjustable, process simplify.
3. Patented curved linkage design, arm working more stable.
4. Lifetime over 10 million times.
5. Motor won't get heat, heavy duty.
6. Planetary gearbox, long lifetime, high precision.
7. Arm auto reverse, arm swing out
Application Range
This automatic gate barrier provides a secure and convenient solution of stopping unauthorized vehicle of giving access :airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Aparment Block ,etc
Packing &Shipping
We use strong carton case with air bubble filled inside to protect products and save your cost.
| Boom Type(meter) | Operation Time(seconds) | Boom Height(meter) |
| 80*45mm≥2.5m | 0.6S | 0.83m |
| 80*45mm≥3m | 0.9S | 0.83m |
| 100*45mm≥4.5m | 3S | 0.83m |
| 100*45mm≥6m | 6S | 0.83m |
| 80*45mm 90°boom≥3m | 1.8S | 0.83m |
| 80*45mm 90°boom≥3.5m | 3S | 0.83m |
| 80*45mm 90°boom≥5m | 6S | 0.83m |
| 80*45mm 180°boom≥3m | 1.8S | 0.83m |
| 80*45mm 180°boom≥4m | 6S | 0.83m |
| 80*45mm 180°boom≥5m | 6S | 0.83m |
| 100*45mm 2 fence boom≥3.5m | 3S | 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m |
| 100*45mm 2 fence boom≥5m | 6S | 0.83m, small vertical boom length is 0.8m, landing boom length is 0.9m |
| 100*45mm 3 fence boom≥3m | 3S | 0.83m, small vertical boom length is 1.5m,landing boom length is 1.6m |
| 100*45mm 3 fence boom≥4m | 6S | 0.83m, small vertical boom length is 1.5m, landing boom length is 1.6m |
| Quantity(sets) | 1 - 50 | 51 - 100 | 101 - 200 | >200 |
| Lead time (days) | 10 | 15 | 20 | To be negotiated |
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY, generally it is 2-5 days if the goods are in stock, or it is 5-7 days for larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc, or your requirements.
Q: How about your payment terms?
A: T/T or Western Union etc.
Q: Do you provide free samples ?
A: No, we don't provide free samples. The MOQ of our products is 1pc.
