Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-130 vehicle barrier gate
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Running Speed: |
1.5s-8s |
Power Supply: |
DC24V |
Backup Battery: |
Yes |
CE ISO: |
YES |
ARM Length: |
6m Straight Arm |
Product Name: |
OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor 5 Millions Operation Time |
Running Speed: |
1.5s-8s |
Power Supply: |
DC24V |
Backup Battery: |
Yes |
CE ISO: |
YES |
ARM Length: |
6m Straight Arm |
Product Name: |
OEM Two Fence Boom Vehicle Barrier Gate With 24V DC Brushless Motor 5 Millions Operation Time |

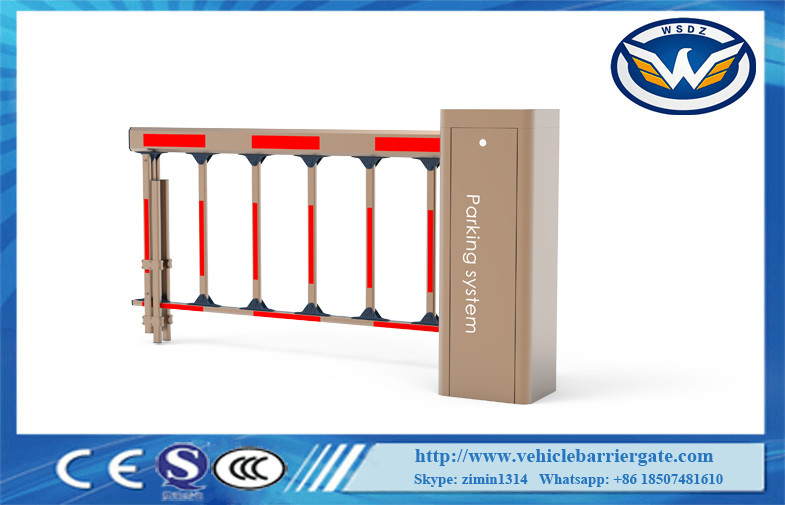

OEM Two Fence Boom Vehicle Barrier Gate With 24V DC brushless Motor 5 millions Operation Time
Vehicle barrier gate specifications:
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated power:140W
5 Relative humidity:≤90%
6 Remote control distance:≤100M(in the open place)
7 IP Degree:IP44
8 Max length of arm:6M straight arm
Vehicle Barrier Gate Features:
| 1 The running speed can be adjusted from 1.5s to 8s |
| 2 Can be quickly interchanged |
| 3 Open the barrier gate by motor wheel when power off ,automatically reset after power on |
| 4 Curved crank arm three- link movement structure, the operation is stable |
| 5 Wireless remote control control open/close |
| 6 Auto reverse function(force adjustable) |
Function setting parameter table
| Menu code | Parameter Name | Parameter scale | Default | Unit | Remark |
| H00-00 | Open speed adjustment | 25-95 | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-01 | Close speed adjustment | 25-95 | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-02 | Open in place decelerate angle | 5-40 | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-03 | Close in place decelerate angle | 5-40 | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-04 | Open accelerate adjustment | 1-20 | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | Close accelerate adjustment | 1-20 | 8 | ms | The smaller the number, the faster the speed |
| H00-06 | Open in place angle | 1-30 | 1 | degree | step size is 1 |
Arm length speed comparison table
|
Menu code |
Open | Close | ||||
| H00-00 | H00-02 | H00-04 | H00-01 | H00-03 | H00-05 | |
| Medium Octagonal arm 3m 1.5s(without rubber) | 95 | 30 | 8 | 95 | 30 | 8 |
| Medium Octagonal arm 3m 1.5s(with rubber) | 95 | 25 | 8 | 95 | 25 | 8 |
| Large Octagonal arm4.5m 3s(without rubber) | 45 | 30 | 10 | 45 | 30 | 10 |
| Large Octagonal arm 6m 5s(with rubber) | 35 | 40 | 10 | 35 | 40 | 10 |
| 3m around arm 1.5s | 95 | 25 | 8 | 95 | 25 | 8 |
(the parameter is based on the company’s arm)
Product Maintenance
10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | 1 | piece | ||
| Mounting batten | 2 | piece | Fixing the case | |
| Expansion bolt | M16*150 | 4 | unit | Fixing the case |
| Case Key | 2 | unit | ||
| Remote controller | 2 | unit | ||
| Instruction | 1 | piece |
