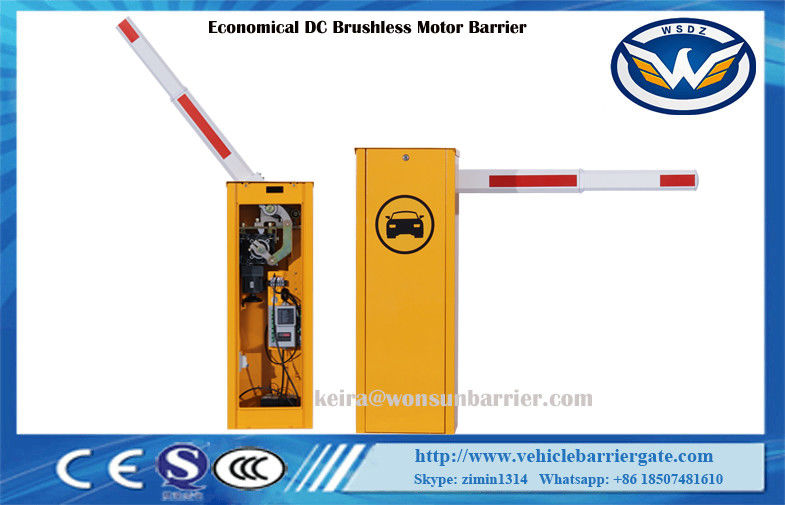

Economical DC motor 24V barrier gate automatic boom barrier car park barriers automatic system
Safety Precautions
To ensure your safe operation, please strictly in accordance with the provisions of this manual.
Features
1 The running speed can be adjusted from 1.5s to 8s
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12 Auto-delay when closing(adjustable)
Technical parameters
| Working temperature(motor) | -35℃~+80℃ |
| Rated voltage | DC24V |
| Running speed | 1.5s-8s |
| Rated current | 8.58A |
| Rated power | 140W |
| No-load speed | 1850rpm |
| Rated speed | 1400rpm |
| Remote control distance | ≤100M(in the open place) |
| IP Degree | IP44 |
| Max length of arm | :6M |
Type Length and Operating Speed Parameters of Barrier Gate
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S | ||
| 4.5M>L≥3M | 3S | ||
| 90 degree folding arm | L≤5M | 5S | |
| 180 degree folding arm | L≤5M | 5S | |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S | ||
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
| 4M>L≥3M | 5S |
Electrical installation, wiring diagram
7.3.1 All the electrical connections are done before delivery and please do not change it randomly.The necessity
is to connect the AC220V power and grounding connection.
7.3.2 Traffic light connector:it can connect power no more than 40W.
7.3.3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
7.3.4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
7.3.5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
7.3.6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7.3.7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
Learning type remote control
The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong anti-interference,
long remote control distance, that can up to 100meters in good weather, use easily and durable. The receiver of learning
code remote control can store 16 different remote control codes, and support unlimited number of same code remote control.
The external receiver learned the remote control within 5 seconds when power on,press the open/close key at the same time
to complete the learning, and reset to continue learn when not complete. If repeat the learning, open the external receiver
shell, there is a white button on circuit board, hold down 15 seconds to delete the remote control code, continue to learn or
press the white button to learn.
