Parking Lot RFID Access Control 6m Automatic Boom Barrier
Place of Origin | China |
---|---|
Brand Name | WONSUN |
Certification | CE |
Model Number | DZ-130 |
Minimum Order Quantity | 1PC |
Price | Negotiable |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Delivery Time | 3-7 working days after received your payment |
Payment Terms | T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc., |
Supply Ability | 1000 Sets/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCE | YES | Arm Type | Straight Arm, Folding Arm, Fence Arm, Optional |
---|---|---|---|
Product Name | Automatic Boom Barrier Parking Lot System With RFID Access Control Backup Batteries Speed Adjustable | Max Boom Length | 6m Aluminum Alloy Arm |
Housing Material | 1.5mm Cold Roller Steel Plate | Housing Dimension | 335 * 285 * 926mm |
Highlight | 6m security boom barrier,RFID automatic barrier gate system |
Automatic Boom Barrier Parking Lot System With RFID Access control Backup Batteries Speed Adjustable
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610

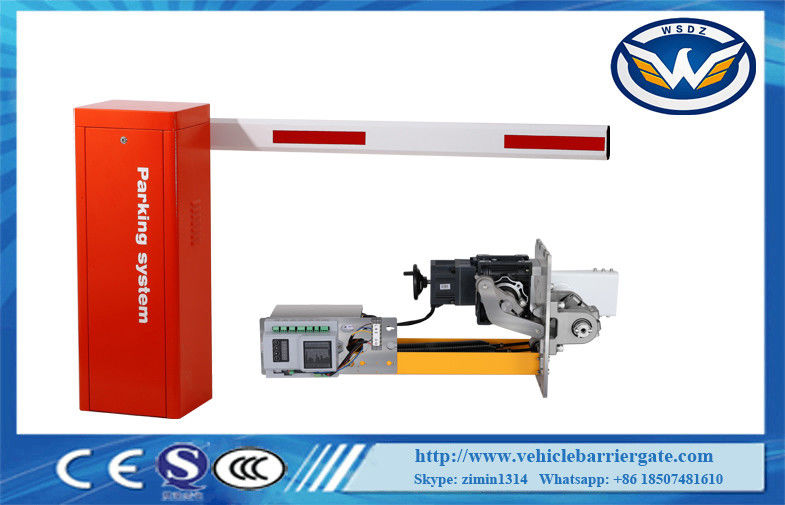

2nd DC brushless motor adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed
technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts
two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance
and long service life .
Functions&Features
1.The operation speed can be adjusted(2s to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.
9. High-sensitivity arm auto reverse function (intensity can be adjusted).
10. Parking system interface.
Technical data
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:140W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
Interchange descriptions:
The product direction can be interchanged, divided into 6 steps.
Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;
Step 2: remove the electrical supporting plate from left side to the right side;
Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);
Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);
Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;
Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange is
completed, no need to adjust other Settings.
Each barrier will include:
1 pcs Vehicle Barrier gate |
1 pcs arm boom (from 1m to 6m can customised) |
1 pcs control panel(built inside) |
2 pcs remote controllers, 1 pc push button |
1 pcs manual book |
