Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Automatic Boom Barrier 24vdc Battery Automatic Parking Gate Barrier |
Working Voltage: |
DC24V |
Time For Up/Down: |
1.5~6s |
Length Of Arm: |
1m-6m |
Color: |
Blue, Red,White |
Place Of Origin: |
Shenzhen,China |
Name: |
Automatic Boom Barrier 24vdc Battery Automatic Parking Gate Barrier |
Working Voltage: |
DC24V |
Time For Up/Down: |
1.5~6s |
Length Of Arm: |
1m-6m |
Color: |
Blue, Red,White |
Place Of Origin: |
Shenzhen,China |

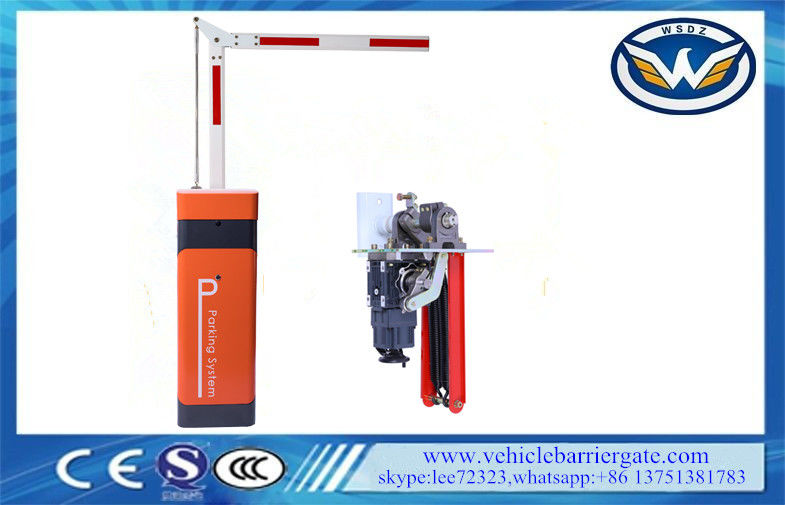

Automatic Boom Barrier 24vdc Battery Automatic Parking Gate Barrier
Thank you for purchasing the 2nd generation brushless barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, no clutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three- link structure, and the landing rod is fast and stable. Easy maintenance and long service life .
|
Safe Operation safety with position sensors, physical limiters and integrated photocell
Heavy duty Consequent movements with 100% heavy duty
Precise Smooth speed and movement control
Reliable Easy installation with slotted mounting plate low serice requirement, long product lifetime. |
Features
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
|
Working temperature(motor) |
-35℃~+85℃ |
| Rated voltage | DC24V |
| Running speed | 1.5s-6s |
| Rated curren | 8.58A |
| Rated power | 140W |
| No-load speed | 1850rpm |
| Rated speed | 1400rpm |
| Output Power | 56.8N.m |
| Relative humidity | ≤90% |
| Remote control distance | ≤100M(in the open place) |
| IP Degree | IP44 |
| Place of origin | China |
Features
| 1.Mechanical and electrical integration:quickly assembly,easy maintenance. |
| 2.Molding production:highprecision,fast efficiency and guaranteed quality. |
| 3.Worm-gear secondary variable speed transmission:motor wheel design,gate opening by manually when power off,no blocking, no oil leakage,large torque,low noise,can normally operation at the temperature of minus 45 degrees,ets. |
| 4.DC brushless motor desgin:low consumption, high efficiency,no overheat, wide speed adjustment. |
| 5.Hall limit:Automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed. |
| 6.Curved triple connecting rod structure,easy to adjust |
| 7.Arm direction quickly interchanged:interchanged according to different directions on construction site,reduce inventory and capital pressure. |
| 8.Special DC brushless controller:use integrated chip dirve, fast processing speed, large memory, powerful function;24V low voltage power supply, adapt to global voltage. |
Product Maintenance
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
Electrical installation, wiring diagram
1 All the electrical connections are done before delivery and please do not change it randomly.The necessity is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
