Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-130
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Power Supply: |
DC24V |
Max Boom Length: |
6m Aluminum Alloy Arm |
Color: |
Red, Yellow， Grey |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit |
Product Name: |
Speed Adjustable DC Brushless Motor Automatic Boom Barrier Access Control |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Power Supply: |
DC24V |
Max Boom Length: |
6m Aluminum Alloy Arm |
Color: |
Red, Yellow， Grey |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit |
Product Name: |
Speed Adjustable DC Brushless Motor Automatic Boom Barrier Access Control |

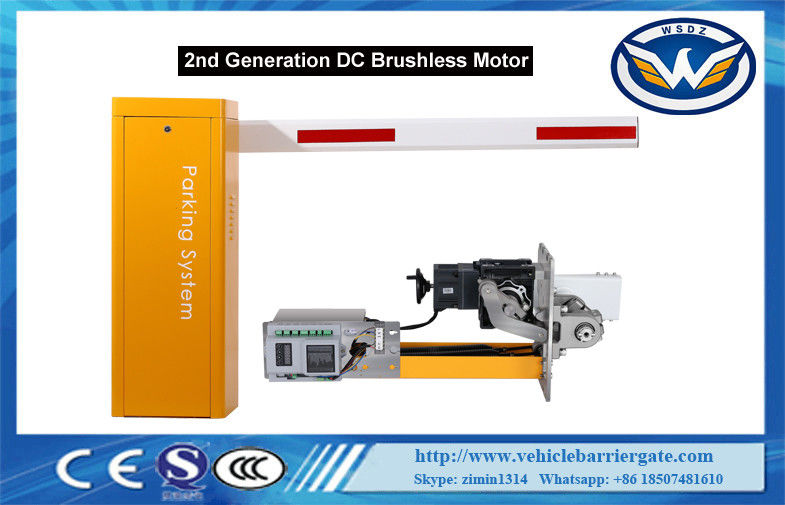

Speed Adjustable DC Brushless Motor Automatic Boom Barrier Access Control
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Each barrier will include:
| 1 pcs Vehicle Barrier gate |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers, 1 pc push button |
| 1 pcs manual book |
Features
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
Technical data
| Working Temperature | -35℃~+85℃ |
| Power Supply | DC24V |
| Open/close Speed | 1.5Sec to 8sec(adjustable) |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Rated Rotating Speed | 1400rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Protection Grade | IP44 |
| Max Boom Length | 6M |
RFQ:
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
Service Items
1 One year’s free servicing is supplied(not including the arm);
2 Lifetime charged servicing is offered;
3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1Broken by the wrong installation.
2Broken by improper voltage.
3The surfaces of the system destroyed by wrong installation or use.
4Broken by natural disaster.
5Overdue.
6Servicing items out of our promises.
Product Maintenance
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
