Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-130
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |
24VDC Brushless Motor Parking Lot Barrier Gates Speed Adjustable Hall Limit |
Max Boom Length: |
6m Aluminum Alloy Arm |
Color: |
Red, Yellow， Grey |
Housing Dimension: |
335 * 285 * 926mm |
Power Supply: |
DC24V |
Working Temperature: |
-35℃~+85℃ |
Product Name: |
24VDC Brushless Motor Parking Lot Barrier Gates Speed Adjustable Hall Limit |
Max Boom Length: |
6m Aluminum Alloy Arm |
Color: |
Red, Yellow， Grey |
Housing Dimension: |
335 * 285 * 926mm |
Power Supply: |
DC24V |
Working Temperature: |
-35℃~+85℃ |

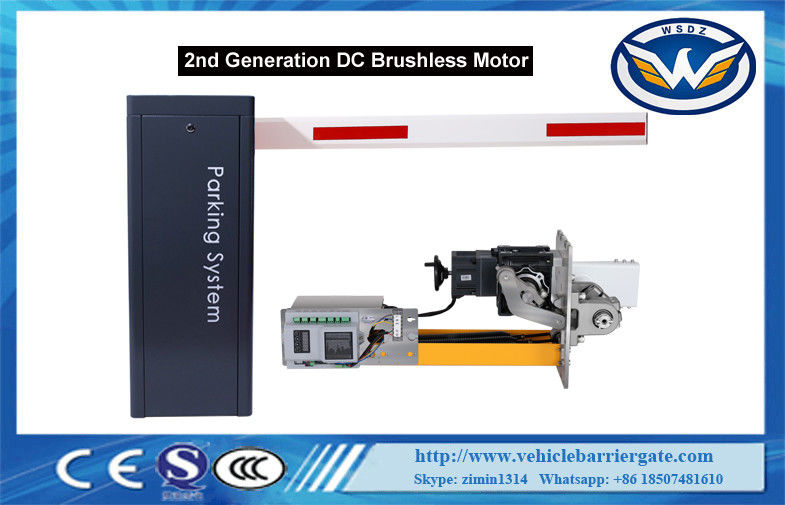

24VDC Brushless Motor Parking Lot Barrier Gates Speed Adjustable Hall Limit
Functions
| 1.The operation speed can be adjusted(2s to 6s). |
| 2.Arm direction can be quickly interchanged. |
| 3.Barrier gate up &down signal relay switch output. |
| 4. R&G Traffic light relay switch signal output. |
| 5. External loop detector signal anti-smashing interface. |
| 6. Infrared sensor signal anti-smashing interface. |
| 7. Count mode interface. |
| 8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage. |
| 9. High-sensitivity arm auto reverse function (intensity can be adjusted). |
| 10. Parking system interface. |
Technical data
| Working Temperature | -35℃~+85℃ |
| Power Supply | DC24V |
| Open/close Speed | 2Sec to 6sec(adjustable) |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Rated Rotating Speed | 1400rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Protection Grade | IP44 |
| Max Boom Length | 6M |
Features:
RFQ:
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
DC Brushless Motor Speed Adjustable Vehicle Barrier Gate With Hall Limit
