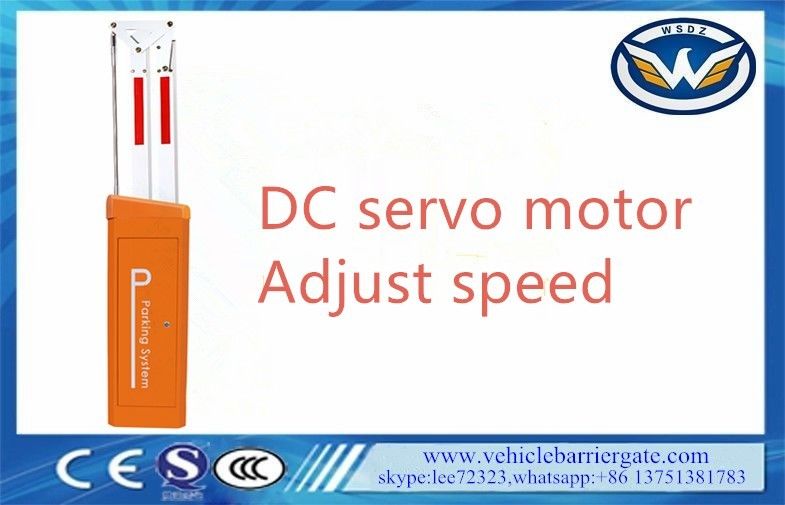

Rapid Barrier Arm Barrier Gate Less Power Consumption AC90V~AC264V DC24V

New Arrival Rapid Barrier Traffic Barrier Gate Less Power Consumption

Introduction

​As rapid barriers, this one is a specialist in vehicle and pedestrian management. It is not only used for blocking access to tunnels and lanes. It exploits its full potential when controlling junctions where traffic alternates in longitudinal and transverse directions. It is therefore not only the optimal solution for road traffic, but also for protecting material flows in production plants,characterised by its energy efficiency, lack of maintenance, and long service life.

Function Description:

1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,

restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when

power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted, 0.9S, 1.3S.

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle

and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Arm direction can be changed easily

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality

Each barrier will include:
